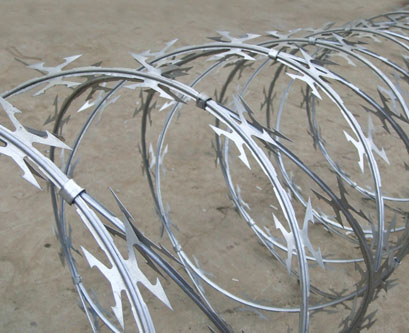

Concertina Razor Wire

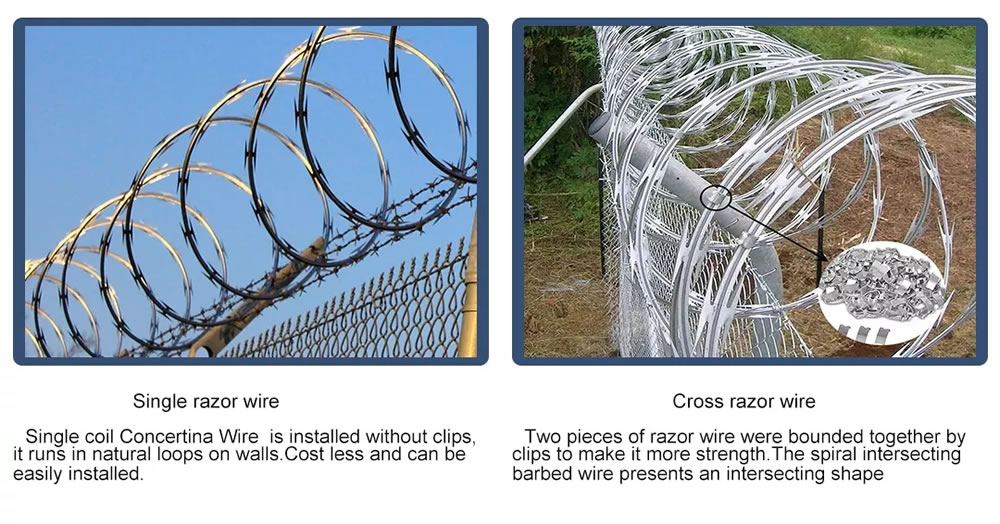

It is also named Crossed Spiral Razor Wire (also known as Double Spiral Razor Wire) is a high-security protective product. It is constructed by vertically interlacing two strands of single-spiral razor wire(The interlocked cross design,It improves security level. Circles of spiral razor wire cross each other, leaving no space for a person or middle-sized animals).
which are then secured at regular intervals using specialized clips (typically 3-point or 5-point clips). The resulting structure is dense and robust, forming a three-dimensional cross-grid pattern that delivers exceptional anti-climbing and anti-intrusion capabilities.
A sharp blade with multiple profiles has piercing and gripping action, which performs psychological deterrent to intruders.
High Stability: Highly resistant to displacement and deformation, demonstrating outstanding resilience against wind and external forces.
Sharp and Durable: The razor blades are manufactured from high-quality steel—ensuring sharpness and wear resistance—and feature a surface finish of either hot-dip galvanization or PVC coating. This treatment provides superior corrosion resistance and rust prevention, making the product ideal for long-term outdoor deployment.

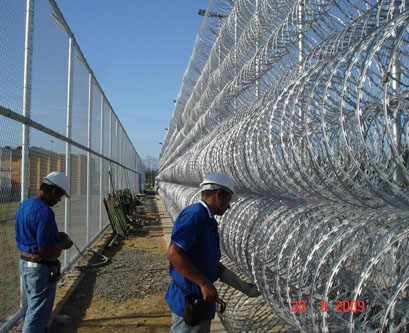

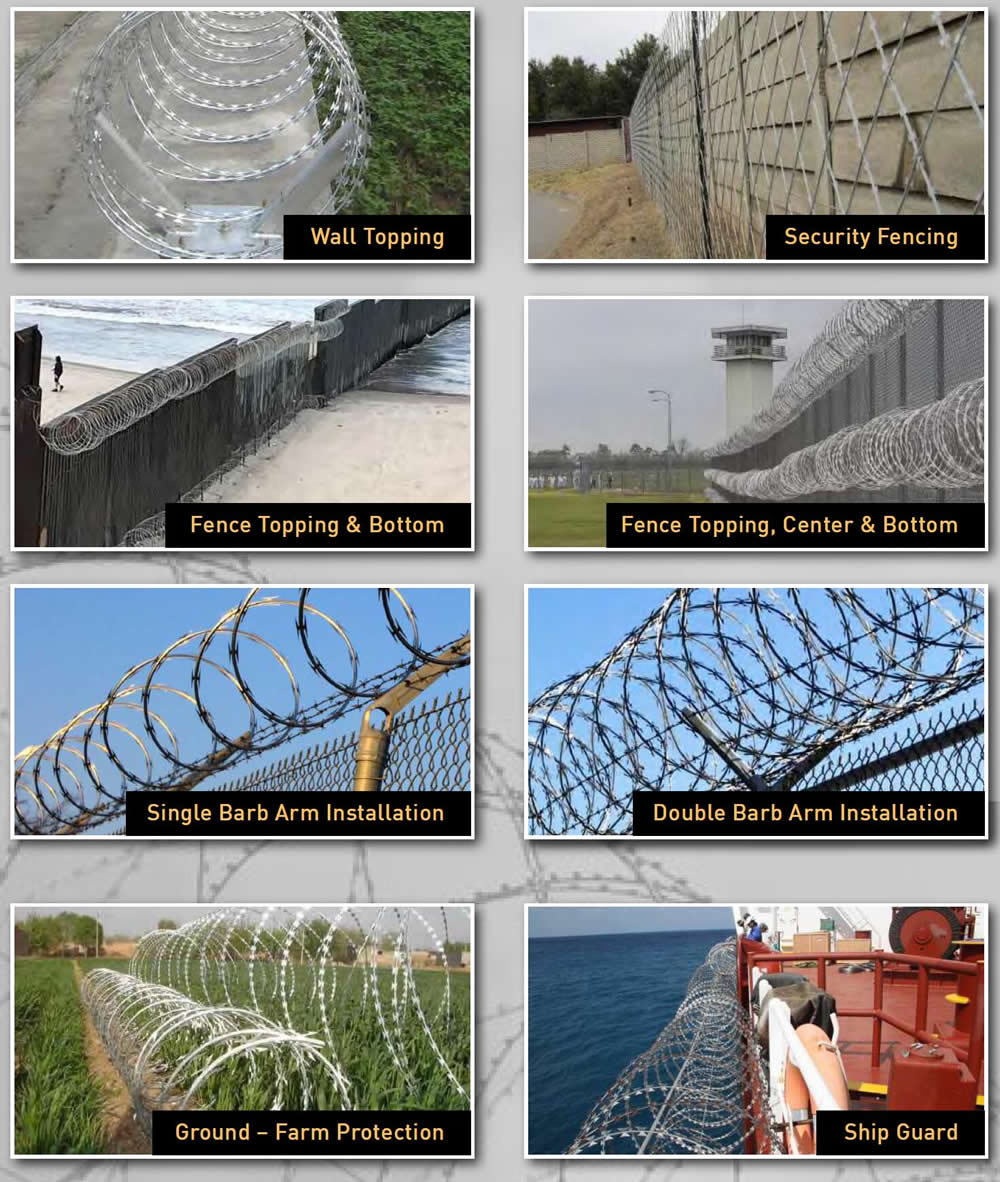

Primary Applications: Primarily utilized in high-security zones with stringent protection requirements, such as prisons, military bases, border crossings, power stations, upscale residential communities, airports, critical industrial facilities,and other boundary or residential

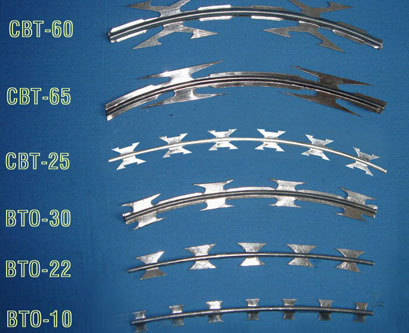

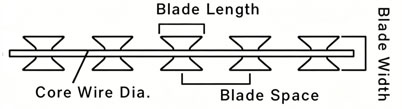

Model | Blade | Thickness | Wire Dia | Barb | Barb | Barb |
BTO-10 |
| 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-30 |
| 0.5±0.05 | 2.5±1 | 30±1 | 18±1 | 46±1 |
CBT-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Barbed Tape Wire Specification:
Barbed Tape Wire Specification (Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) | ||||
Outside | No. of | Standard Length | Type | Notes |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.15.22 | Cross type |
600mm | 86 | 14M | BTO-10.15.22 | Cross type |
700mm | 72 | 12M | BTO-10.15.22 | Cross type |
800mm | 64 | 10M | BTO-10.15.22 | Cross type |
960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
Special sizes can be offered according to the requirements' of the customers.
